Grid Connector for DC
Fast-Track AI Data
A skid-mounted solution integrating power, battery storage, and cooling for 1 MW-class AI data centers. Factory integration minimizes on-site work, enabling Zero-Day Connection.*"
Grid Connector for DC
Grid Connector for Data Centers integrates grid connection, power conversion, battery storage, and cooling supply in a factory-assembled skid system, minimizing on-site work and enabling PowerX's "Zero-Day Connection" concept.*
Simplify Every Stage of AI Data Center Deployment
All-in-One
Design
Power, battery storage, and cooling in one integrated system to simplify procurement.
Zero-Day
Deployment*
Factory-integrated equipment minimizes on-site work and accelerates deployment.
Optimized
Project Costs
Streamlined design, procurement, and construction help reduce deployment costs.

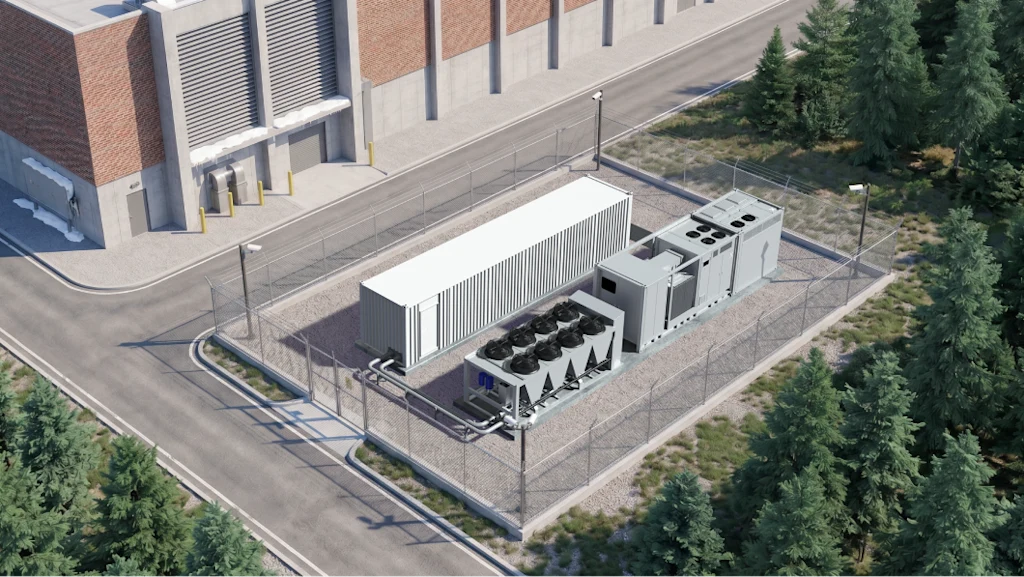

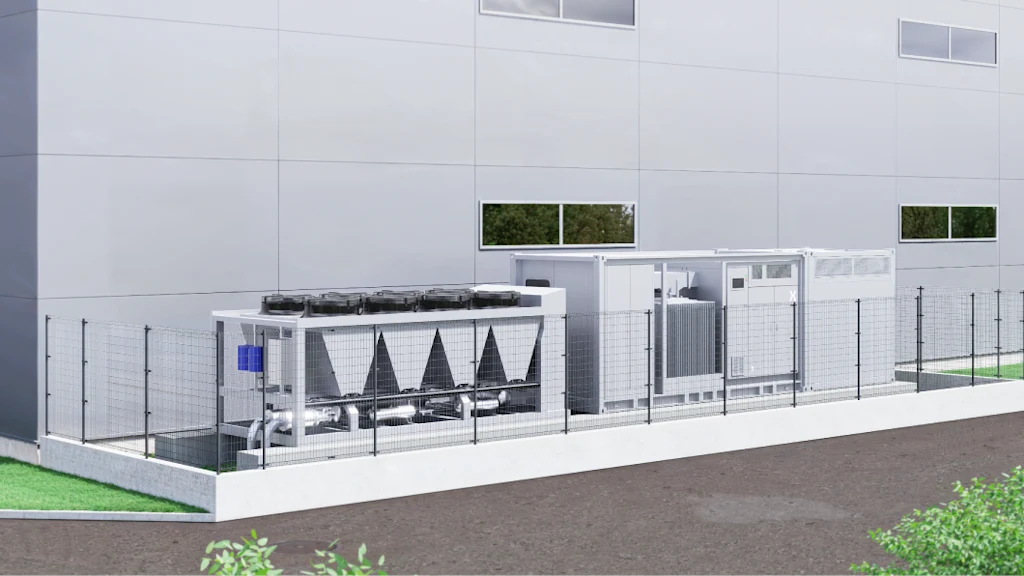

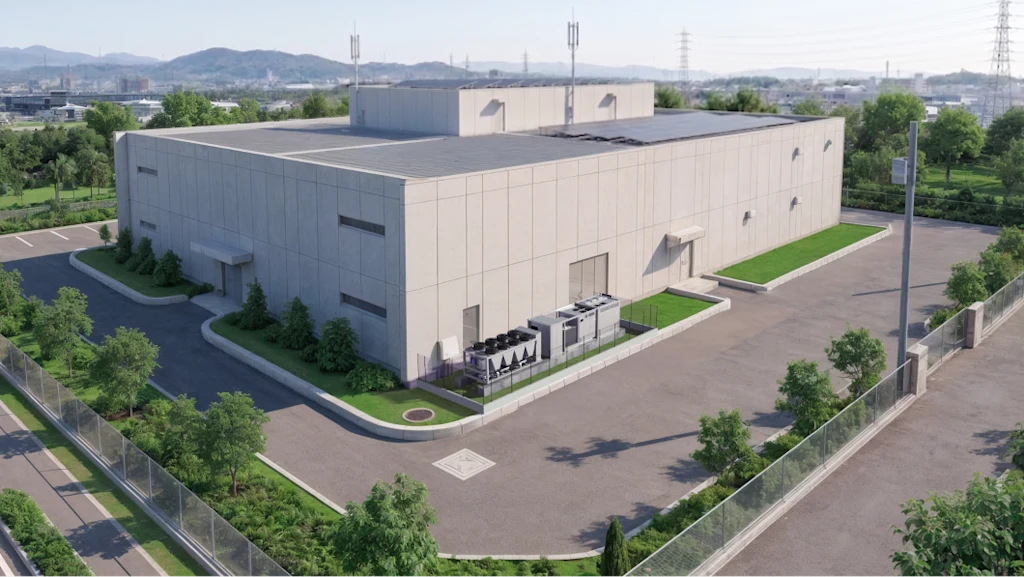

Installation Illustration
Specifications
Single Skid
Double Skid
DC voltage
1,040-1,500 Vdc
1,040-1,500 Vdc
Max current
2,253 A
2 x 2,253 A
DC interfaces
1 or 2
2 or 4
Rated AC power
up to 2,331 kVA
up to 4,602 kVA
MV voltage
6.6 - 22 kV
6.6 - 22 kV
Transformer
Oil-cooled 2.5 MVA
Oil-cooled 5 MVA
Winding
Dyn11
Dyn11 dual
Weight (est.)
~20 t
~25 t
Temp / corrosion
-20 to 40℃・C5M
-20 to 40℃・C5M
Watch the Mega Power 4000 Series & Grid Connector Product Launch
* “Zero-Day Connection” is a PowerX- deployment concept in which key equipment is integrated at the factory, limiting on-site work primarily to installation and connection. Actual scope and project timelines vary by system configuration and site conditions.
